18. Viewing Images
As with text, there are tools for both viewing and editing images. This
chapter describes the various methods for viewing images; the editing of
images is discussed in the next chapter). While you can view an image
with an image editor, it is safer (and faster!) to view with a
viewer when you do not intend to edit it.
18.1 Previewing Print Files
The DVI ("DeVice Independent"), PostScript, and PDF ("Portable
Document Format") file formats can be generated by a number of
applications. They are graphical image formats commonly used for
printing; methods for previewing these files on the display screen are
discussed in the following sections.
18.1.1 Previewing a DVI File
Use the xdvi tool to preview a DVI file in X. Give the name of
the file to preview as an argument. xdvi will show how the
document will look when printed, and let you view it at different
magnifications.
-
To preview the file `gentle.dvi', type:
To magnify the view of the document, left-click any of the buttons
labelled with a percentage, such as 17%; they magnify the view by
that percentage.
-
To magnify the view by 33%, left-click the button marked
33%.
The following table lists some of xdvi's commands.
| COMMAND |
DESCRIPTION
|
Q |
Exit xdvi and stop previewing the file.
|
N |
Advance to the next page.
|
P |
Move to previous page.
|
C-c |
Same as Q.
|
C-d |
Same as Q.
|
SPC |
Same as N.
|
C-l |
Redisplay the current page.
|
R |
Re-read the DVI file.
|
18.1.2 Previewing a PostScript File
@sf{Debian}: `ghostview'
@sf{Debian}: `gv'
@sf{WWW}: http://wwwthep.physik.uni-mainz.de/~plass/gv/
To preview a PostScript or EPS image file in X, use
ghostview. It
takes a file name as an argument, and it previews the contents of the
file in a window, starting with its first page.
-
To preview the file `/usr/doc/gs/examples/tiger.ps', type:
| | $ ghostview /usr/doc/gs/examples/tiger.ps RET
|
Press Q to exit and press SPC to advance to the
next page, if there is one.
NOTE: Some people prefer the gv tool as an alternate to
ghostview; gv is used in much the same way, though it has
a different interface.
18.1.3 Previewing a PDF File
@sf{Debian}: `xpdf'
@sf{WWW}: http://www.foolabs.com/xpdf/
@sf{Debian}: `gv'
@sf{WWW}: http://wwwthep.physik.uni-mainz.de/~plass/gv/
Use
xpdf to preview a PDF file. Give the name of the PDF file to
preview as an argument.
-
To preview the PDF file `flyer.pdf', type:
To exit xpdf, press Q; use the two magnifying-glass buttons
to zoom the view closer in (+) or further out (-), and use
the left and right arrow buttons to move to the previous and next pages,
if any.
NOTE: You can also use gv to preview PDF files.
18.2 Viewing an Image in X
@sf{Debian}: `imagemagick'
@sf{WWW}: ftp://ftp.wizards.dupont.com/pub/ImageMagick/
To view an image in X, use
display, part of the ImageMagick suite
of tools. It can recognize many image formats, including FlashPix,
GIF/GIF87, Group 3 faxes, JPEG, PBM/PNM/PPM, PhotoCD, TGA, TIFF,
TransFig, and XBM.
display takes as an argument the file name of the image to be
viewed, and it displays the image in a new window.
-
To view the file `sailboat.jpeg', type:
| | $ display sailboat.jpeg RET
|

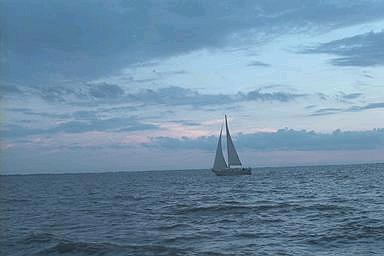

This command displays the image file in a new window:

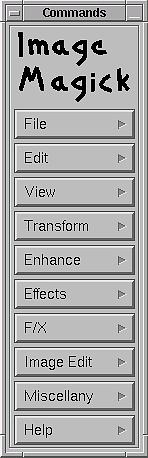

The mouse buttons have special meaning in display. Left-click on
the image window to open the display command menu in a new
window. The display command menu looks like this:
Menu items let you change the image size and otherwise change or
transform the image display. Choose Overview from the Help
menu for an explanation of the various available display
commands.
Middle-click on the image to open a new window with a magnified view of
the image centered where you click. For example, middle-clicking on the
sailboat image in the previous example will open a new window that looks
like this:
Finally, right-click on the image window for a pop-up menu containing a
few of the most frequently-used commands; to choose one of these
commands, drag the mouse pointer over the command. Commands in the
pop-up menu include Quit, which exits display, and the
Image Info, which displays information about the image file
itself, including number of colors, image depth, and resolution.
The following table describes some of the keyboard commands that work
when displaying an image in display.
| COMMAND |
DESCRIPTION
|
SPC |
Display the next image specified on the command line.
|
BKSP |
Display the previous image specified on the command line.
|
C-q |
Quit displaying the image and exit display.
|
C-s |
Write the image to a file.
|
< |
Halve the image size.
|
> |
Double the image size.
|
- |
Return the image to its original size.
|
/ |
Rotate image 90 degrees clockwise.
|
\ |
Rotate image 90 degrees counter-clockwise.
|
? |
Open a new window with information about the image, including
resolution, color depth, format, and comments, if any.
|
h |
Toggle a horizontal mirror image.
|
v |
Toggle a vertical mirror image.
|
NOTE: display can also be used to view images on the
World Wide Web--see Viewing an Image from the Web.
18.2.1 Browsing Image Collections in X
The display tool offers a feature for browsing a collection of
images--give `vid:' as the file argument, followed by the file
names or pattern to match them in quotes. display makes
thumbnails of the specified images, and displays them in a new window,
which it calls a visual image directory.
-
To browse through the image files with a `.gif' extension in the
`/usr/doc/imagemagick/examples' directory, type:
| | $ display 'vid:/usr/doc/imagemagick/examples/*.gif' RET
|
-
To browse through all image files in the current directory, type:
In the preceding example, only those files with image formats
supported by display are read and displayed.
NOTE: To open an image at its normal size, right-click the
image and choose Load; the thumbnail will be replaced by its
full-size image. To return to the thumbnail directory, right-click the
image and choose Former.
18.2.2 Putting an Image in the Root Window
One way to put an image in the root window (the background behind all
other windows) is to use display and give `root' as an
argument to the `-window' option.
-
To put the image `tetra.jpeg' in the root window, type:
| | $ display -window root tetra.jpeg RET
|
18.3 Browsing Images in a Console
Use zgv to view images in a virtual console (not in X). You can
use zgv to browse through the filesystem and select images to
view, or give as arguments the names of image files to view. It
recognizes many image formats, including GIF, JPEG, PNG, PBM/PNM/PPM,
TGA and PCX; one of its nicest features is that it can fill the entire
screen with an image.
When you run zgv with no options, it displays image icons of any
images in the current directory, listing any subdirectories as folder
icons. You can also give the name of a directory as an argument in order
to browse the images in that directory.
-
To browse the images in the current directory, type:
-
To browse the images in the `/usr/share/gimp/scripts' directory, type:
| | $ zgv /usr/share/gimp/scripts RET
|
Use the arrow keys to navigate through the file display; the red border
around a image or directory icon indicates which image or subdirectory
is selected. Type RET to view the selected image or to change to
the selected directory.
You can manipulate the images you view in a number of ways--zoom the
image magnification in and out, change the brightness and color, and
even make automatic "slide shows" of images. The following table
describes some of zgv's options.
| OPTION |
DESCRIPTION
|
-c |
Toggle image centering. Images are centered on screen by default;
specifying this option turns off centering.
|
-i |
Ignore errors due to corrupted files, and display whatever portion
of the file is displayable.
|
-l |
Start zgv in slide-show mode, where it loops through all
images specified as arguments, continuously, until you interrupt it.
|
-M |
Toggle mouse support. Mouse support is off by default; this option
turns it on.
|
-r integer |
Reread and redisplay every image after every integer
seconds. Useful for viewing webcam images or other image files that are
continuously changing.
|
18.4 Viewing an Image in a Web Browser
If you have a graphical Web browser, such as mozilla, you can use
it to view a graphic image. While viewing images in a browser doesn't
offer much flexibility (you can't zoom in on a portion of the image, or
get information about the image resolution and other details), if you
simply want to quickly view an image file while you are in X, and you
have a Web browser running, it can be a quick and easy way to do it.
To view an image file in a Web browser, specify a file: URL
pointing to the file name of the image in the Location field of
the browser.
-
To view the file `/usr/share/images/mondrian-15.jpeg', type:
| | file:/usr/share/images/mondrian-15.jpeg RET
|
Notice that the given file: URL only has one preceding slash,
pointing to the root directory, and not two, as in http://.
18.5 Browsing PhotoCD Archives
@sf{Debian}: `xpcd'
@sf{Debian}: `xpcd-gimp'
@sf{WWW}: http://user.cs.tu-berlin.de/~kraxel/linux/xpcd/
The
xpcd tool is an X client for viewing and browsing collections
of Kodak PhotoCD images. To browse the images on a Kodak PhotoCD, mount
the CD-ROM (see section
Mounting a CD-ROM), and then give
the mount point as an argument to
xpcd.
-
To browse the images on the PhotoCD disc mounted on `/cdrom', type:
The preceding example will open two new windows--a small xpcd
command bar window, and a larger window containing thumbnails of all
PhotoCD images on the disc.
To open a copy of an image in a new window, left-click its thumbnail
image. When you do, xpcd will open the image at the
second-smallest PhotoCD resolution, 256x384; to view it at a another
size, right-click the image and choose the size to view. Once the new
window is drawn, you can right-click on this new image to save it as
a JPEG, PPM, or TIFF format image.
To view an individual `.pcd' file with xpcd, give the name
of the file as an argument.
-
To view the PhotoCD file `driveby-001.pcd', type:
| | $ xpcd driveby-001.pcd RET
|
NOTE: You can also use display to view a `.pcd'
PhotoCD image file (see section Viewing an Image in X).
See Extracting PhotoCD images for another
recipe for extracting PhotoCD images.
18.6 Additional Image Viewers
The following table lists other tools for viewing images.
| TOOL |
DESCRIPTION
|
animate |
Part of the ImageMagick suite; use animate to display an
animated slide-show sequence of images in X.
{@sf{Debian}}: `imagemagick'
{@sf{WWW}}: ftp://ftp.wizards.dupont.com/pub/ImageMagick/
|
xwud |
Displays files in the special X Window Dump file format, as created
by xwd.
{@sf{Debian}}: `xbase-clients'
{@sf{WWW}}: http://www.xfree86.org/
|
showpicture |
Views an image sent as an email attachment; requires
xloadimage.
{@sf{Debian}}: `metamail'
{@sf{WWW}}: ftp://ftp.bellcore.com:/pub/nsb/mm2.7.tar.Z
|
xli |
Basic image viewer for X.
{@sf{Debian}}: `xli'
|
xloadimage |
Nice graphics viewer for X that contains tools for viewing images
in the root window.
{@sf{Debian}}: `xloadimage'
|
aview |
View graphics as "ASCII art." This tool can view any image format
supported by the pbmplus utility suite, and has fluid zoom in/out
and all the rendering options you'd expect from a world-class viewer.
{@sf{Debian}}: `aview'
{@sf{WWW}}: ftp://ftp.ta.jcu.cz://pub/aa
|
This document was generated
using texi2html
