Reverb
What is Reverb ?
A Reverb simulates the component of sound that results from reflections from surrounding walls or objects.
It is in effect a room simulator. Some peope think it's just a delay effect with some filters, but it's way
more complex than that. Reverb effects (software plugins or external hardware units) provide
an interface to their changable parameters that need some explaining. Let's look at a simple room first.
Basic Simulation of a Room
Our model is a simple room with four straight walls, a sound source and a listener. In Figure 1
the arrows stand for the path of travelling sound.
The listener hears the DIRECT signal first. The DIRECT signal is also referred to as the DRY part of the signal when using
any effect. Most digital reverbs produce two parts: The Early Reflections and the Reverb component.

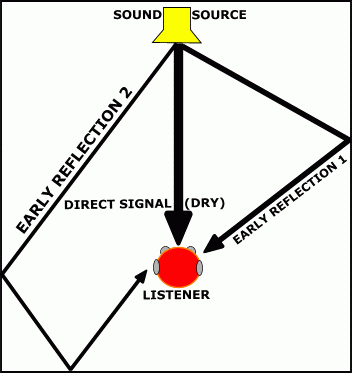

Figure 1 |
The first Early Reflection reaches the listener milliseconds after
the direct signal does.
The path of the Early Reflections is longer. The difference in time between the arrival of
the direct signal and the first Early Reflections is measured in milliseconds.
|

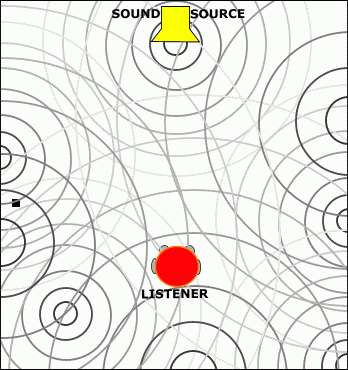

Figure 1 |
The sound reflects off the walls and objects in the room, and in time individual reflections
disapear and the Reverb develops.
Predelay
The time between the reception of the DIRECT signal by the listener and start of the Reverb portion
of the effect is called Predelay. This is a parameter in many digital reverb effects, and it
is expressed in milliseconds (ms).
Reverb Time
The time difference between switching off any sound generator and the level of the reverb resulting
from that sound dropping by 60dB is called RT60.
This is usualy referred to as the Reverb Time. When anyone refers to the reverb time
of a real room or that of a digital reverb, RT60 is what they're talking about.
Most digital reverbs feature this as a parameter.
|
Common parameters of a digital Reverb
|
Usualy controlled via Room type and/or Room Size parameters.
The EARLY REFLECTIONS enable the human brain to quickly identify the room size. They are
therefore the most critical part of a reverb effect, if a room simluation is the goal.
|
|
Paramter Range : 0 to x milliseconds
Time between Direct Signal and start of Reverb portion.
The more space between you and walls or other reflective objects, the greater the Predelay.
|
|
Paramter Range : 0.1 to x.x seconds
The greater the enclosed(!) volume of the space you're in, the longer the reverb time. Many reverb effects
let you set different reverb times for different frequency bands. Most on PC and Mac architectures provide two bands.
|
|
Usualy a Hishelf and/or a Lowshelf EQ with variable Frequency.
These EQs are applied continously to an evolving reverb of a piece of audio.
Over time, as the reverb fades, so do certain frequencies, either in the lower
or higher frequency range. The more less-reflective surfaces the sound bounces
around from, the more the reverb is dampened the higher frequencies.
Freeverb features a Damping parameter that dampens the upper frequencies.
|
|
Usualy a Hishelf and/or Lowshelf EQ with variable Frequency.
These EQs are only applied to the output of the reverb or perhaps even just the reverb portion
of the Reverb effect. Some reverbs have Hishelf and Lowshelf EQs for the Early Reflections as well.
Freeverb has both a Hicut and Lowcut parameter.
|
Here's a screenshot taken from the reverb plugin Renaissance Reverberator by Waves.
reproduced with permission
Here we have the Hishelf and Lowshelf EQs for Damping(left) and for the final output(right). The upper middle display
depicts the Early Reflections placement and level, as well as the Reverb portion start and fading. Above this display
is the Reverb Type selector. This changes the placement and level of the Early Reflections. The Size slider
has influence on the Early Reflections as well.
Blank concrete will reflect sound quite well across the frequency spectrum. A large thick curtain
or padded walls will reflect sound poorly. A large club filled with people sounds completly different
from an empty one. People, comfy chairs, curtains, carpets, beds and many more objects reflect only
part of the sound that hits them.
An example by the numbers
As an example I'd like to show you how to create a reverb for small club
with a band.
Let's see what we have to do with parameters in the reverb fx in sample
editors. First we determine some basics about the room we want to simulate.
Our room(the club) is about eight meters on all sides(for simplicity)
and three meters high. The band will be playing no more than four meters
away from us. The room volume will be about 200 cubic meters.
This means that the DIRECT SOUND will get to you within about
11 ms (milliseconds). This is the amount of time we'll need to take off the other values.
The first EARLY REFLECTIONS (off the left and right walls) travel
around nine meters before reaching you, so they'll get to your ears about
15 ms later! (9 meters at 343 meters/sec -> 26 ms minus the 11 ms the DIRECT
SOUND takes to travel to your ears).
I'm not taking the floor into account because of the obstacles, such as your
own legs and a table, that prevent reflections of sound from the band from
reaching you. It is also probable that your sitting close to a wall and
EARLY REFLECTION time may drop considerably. Experiment and listen very
carefully.
The reason I'm deducting 11 ms from the 26 ms is that in a sample editor
we already have the DIRECT SOUND.
In Cool Edit an EARLY REFLECTIONS parameter doesn't exist. In Soundforge
however there are a few ER times to choose from. We choose whatever is
closest to 15 ms. Freeverb unfortunatly does not have an Early Reflections
feature.
Please note that the timing of the EARLY REFLECTIONS are defined by the
rooms characteristics such as shape and size. The sound colour of the
EARLY REFLECTIONS is defined by the surfaces in the room.These are parameters
that are available to professional reverbs only(hard- or software), so don't
worry about not finding that stuff in great detail in either Soundforge's,
CoolEditPro's or plugins of other editors.
The PRE-DELAY and REVERB TIME depend on more than just room size.
Wall and floor material, as well as anything else that reflects, disperses
and dampens sound will influence the reverb in quite a few ways.
Our club has lots of wood on it's walls and floor and people are sitting
at tables and the air's probably filled with a little smoke(except in
California :).
The REVERB TIME, a parameter found in almost all plugins, should be set to
no more than one second. In small, crowded rooms where little REVERB occurs
it is quite important to set the EARLY REFLECTIONS right. Experiment with
the reverb time keep it lower than 1.2 seconds and above 0.7 seconds.
Freeverb puts all this information in to the SIZE parameter.
The PRE-DELAY can be set to 30 ms or more. Larger rooms will develop REVERB
later since the reflecting sound will travel a while before the reflections
become hard to identify but it also depends on the reflecting materials.
Freeverb once again doesn't know any Predelays, but since you're reading this
to learn how things work, it's still worth spelling out.
Both Cool Edit and Soundforge have parameters referring to the DENSITY of the
REVERB part of the sound. Materials such as polished marble will reflect the
sound very well and disperse the sound very little. Wood disperses the sound
a lot and a carpet practically swallows a large chunk of it.
For our Club we need to set the density high since our material disperses the
sound a lot(humans,wood and obstacles). No parameter like that in Freeverb and
yet it sounds great. It's easy to use as well, so I don't realy mind when using it.
Higher frequencies are swallowed a lot faster than low frequencies.
Many reverb algorythems refer to this in some form or another. Cool Edit
has the 'High Frequency Absorbtion Time' as a parameter for this.
Sound Forge gives you a choice, whether to do this at all for both low and
high frequencies and even lets you set them but doesn't provide any time
parameters. Professional Reverb hardware such as Lexicon PCM 70,80&90 let you
you control frequency and time of this, for low and high frequencies.
Freeverb has the DAMPEN parameter for this.
This can effectivly add to room's liveliness. A room full of people will
absorb high frequencies a lot faster than an empty room, in which only the
materials would make the difference, so in Cool Edit we'll set the 'High
Frequency Absorbtion Time' very low, since we're in a crowded club.
For Soundforge activate the 'Attenuate high frequencies above' box and set
the frequency parameter to around 2000-2500 Hz. Experiment a bit. The higher
this frequeny and the longer the Absorbtion Time parameter in Cool Edit,
the emptier and and colder your room will seem. In small rooms this can
cause the room to sound very metallic. Sewer pipes and oil pipelines e.g.
The Reverb EQs are the final processing stage and can change the sound
dramatically. These Hishelf and Lowshelf EQs are found in almost ANY
Reverb plugin and hardware unit. Freeverb has both in form of Hipass and
Lowpass filters. These are not EQs. The parameters change the target
frequencies of the filters. Again, listen.
The last thing you have to do is set the balance between the WET signal
and your original DRY signal. Here you can do as you please but remember
that only very smoothed hard surfaces in big cavernous space create very loud
reverbs. A church might do that if there aren't a big number of people and
wooden benches in there, but a club doesn't :). Remember that in Audacity
it is smarter to DUPLICATE the part you wish to add reverb to, and run the
effect over that duplicate. The volume of that reverbed material is easier
to control, so set the WET parameter in Freeverb to 0dB(->100%) and the
DRY parameter to -endless(->0% left most slider position).
So when you create your next 'soon-to-be-the-hit' song or want to put things
in perspective, be sure to check the possibilities of adding dimension and
scope to your material through clever use of reverbs.
Put your snare to the front, the piano a little to the back, and the sax
just a little in front of the drums. Experiment. With these basics you'll
be able to get better results in less time.
Btw, Snare always gets reverb. How much and what kind up to you, but it's a
generaly good thing. It's also important to decide whether you're trying to
simulate a real live band or doing a multitrack sound, which boasts all kinds
of nice ideas, like doubling(another take of the same thing on top of the
first take), extreme panning and in general NOT reality :).
More tips for using reverbs, including special effects can be found in the
Tips for Reverbs section.
